Color
Natural
Orientation
Right-Hand
Product Name

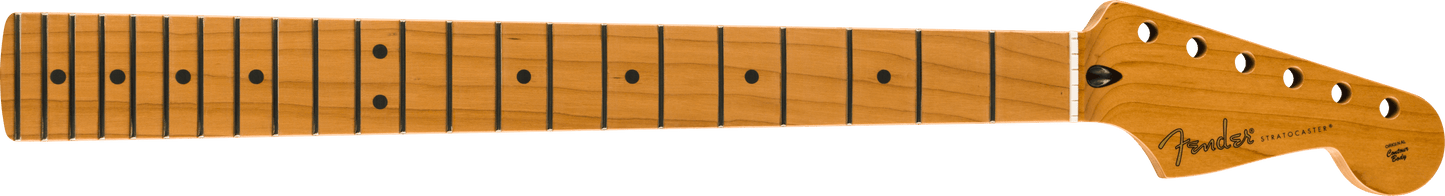

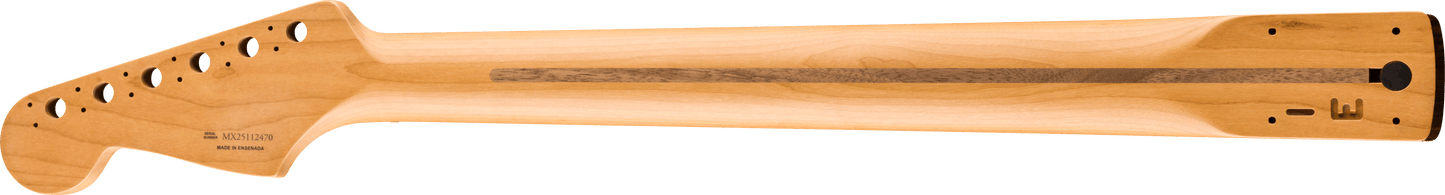

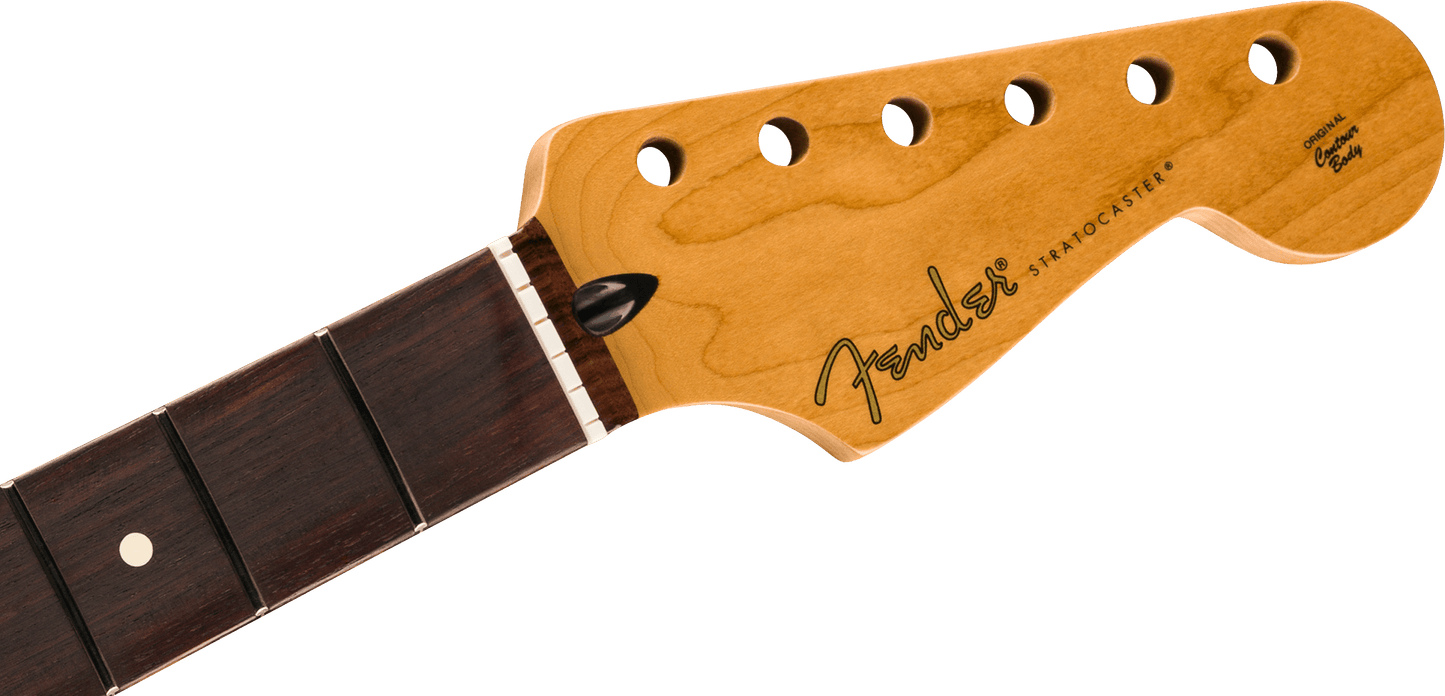

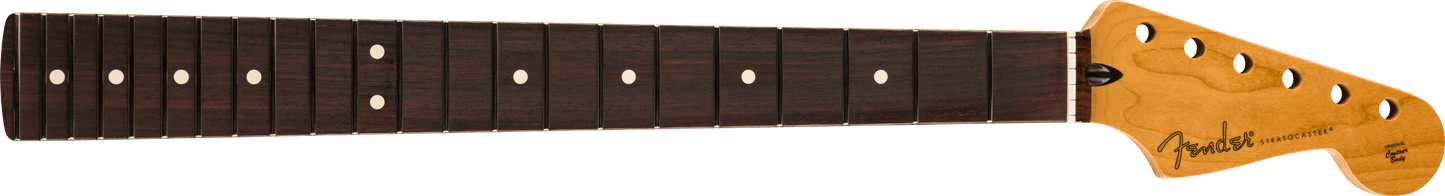

Satin Roasted Maple Fat Stratocaster® Neck, 22 Medium Jumbo Frets, 9.5", Rosewood, U Shape
Series
Fat Satin
Satin Roasted Maple Fat Stratocaster® Neck, 22 Medium Jumbo Frets, 9.5", U Shape
Regular price
519,00 €
Regular price
519,00 €
519,00 €
Sale price
Unit price
per
inc. VAT*
Satin Roasted Maple Fat Stratocaster® Neck, 22 Medium Jumbo Frets, 9.5", U Shape
Satin Roasted Maple Fat Stratocaster® Neck, 22 Medium Jumbo Frets, 9.5", U Shape
Regular price
519,00 €
Regular price
519,00 €
519,00 €
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
Shipping & Returns
Free shipping on orders over 49€. Delivery Times: Standard 2-4 Days, Express 1-3 Days. Learn more
Return or exchange your purchase for any reason within 30 days of receipt. Learn more
Details
Summary
Overview
The story of Fender's modular design began in 1946, and guitarists have been writing their own chapters ever since. Our pioneering bolt-on neck construction wasn't just about making guitars easier to service—it was about giving players the power to shape their sound. Today, every genuine Fender replacement neck carries that legacy forward, offering endless possibilities for customization, restoration, and reinvention.
Crafted at our Ensenada, Mexico facility, this genuine Fender® Stratocaster® neck features an oversized “U”-shaped profile that's perfect for players seeking substantial feel and presence. At .990" at both the 1st and 12th frets, this is the largest neck profile in the Fender replacement neck lineup – built for those who demand maximum real estate.
Experience the undeniable appeal of roasted maple – naturally resistant to humidity changes while delivering enhanced sustain and a distinctive tonal character that adds depth to your instrument's voice. The rich, dark aesthetic is just the beginning, complemented by a satin urethane finish and rolled fingerboard edges that provide supreme comfort and a broken-in feel.
This replacement neck is for a Fender® or Squier® by Fender guitar.
Because Fender genuine replacement necks have not been mounted to guitar bodies, nut slots must be cut by qualified personnel. Other installation processes may be required, such as fret work, fitting the neck to the neck pocket, and other instrument setup procedures. Your local FMIC Authorized Service Center can install genuine replacement necks; find Authorized Service Center locations near you in the “Support” section of fender.com.
Overview
Features
- The Fender Fat Roasted Maple Stratocaster® guitar neck delivers an oversized “U”-shaped profile that's perfect for players seeking substantial feel and presence
- Resistant to humidity shifts and featuring a gorgeous, dark look, roasted necks have more sustain and add a unique note to the instrument's voice
- Chunky and rounded, with high shoulders, deep U-shaped necks are good for players with large hands, and players more comfortable with their thumb on the back or side of the neck and hand-rolled edges offer a naturally comfortable, played-in feel
- A 9.5"-radius maple or rosewood fingerboard and 22 medium jumbo frets facilitate fluid leads and choke free bends
- The silky-smooth satin urethane back finish provides faster movement up and down the neck
- Made of melamine, this 1.650" width synthetic bone nut offers great resonance and sustain and is pre-slotted to ensure proper string spacing
General
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Modern
Neck
Fingerboard Material
Roasted Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Large "U"
Neck Thickness
1st Fret - .990” (25.14 mm), 12th Fret - .990” (25.14 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
White Dot
Side Dots
White
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
General
Color
Natural
Orientation
Right-Hand
Product Name
Satin Roasted Maple Fat Stratocaster® Neck, 22 Medium Jumbo Frets, 9.5", Maple, U Shape
Series
Fat Satin
Hardware
Tuner Mounting Config
Dual Guide Pin
Measurements
Fret Size
Medium Jumbo
Fret Wire Dimensions
0.103" (H) x 0.046" (W)
Headstock Thickness
.540” (13.71 mm)
Peg Hole Diameter
.397" (10.08 mm)
Scale Length
25.5" (648 mm)
Miscellaneous
Style
Modern
Neck
Fingerboard Material
Roasted Maple
Fingerboard Radius
9.5" (241 mm)
Neck Finish
Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face
Neck Material
Maple with Walnut Stripe
Neck Mounting
4-Bolt
Neck Shape
Large "U"
Neck Thickness
1st Fret - .990” (25.14 mm), 12th Fret - .990” (25.14 mm)
Number of Frets
22
Nut Material
Synthetic Bone
Nut Width
1.650" (42 mm)
Position Inlays
Black Dot
Side Dots
Black
String Nut
Synthetic Bone
Truss Rod
Single Action, Head Adjust
Truss Rod Nut
3/16" Hex Adjustment
